Dettagli del prodotto
Luogo di origine: Shenzhen Cina
Marca: Longyuan
Certificazione: FCC CE RoHS ISO9001
Numero di modello: LY-8823
Termini di pagamento e di spedizione
Quantità di ordine minimo: 10pcs (campione disponibile)
Prezzo: negotiable
Imballaggi particolari: Il pacchetto del contenitore di cartone, 50pcs/layer, 2layers/carton, pacchetto ha accettato su misu
Tempi di consegna: giorni 5-15work
Termini di pagamento: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Capacità di alimentazione: 10000pcs/day
Dimensione della serratura: |
70mmx70mmx13.2mm |
Peso con il gancio: |
210g |
Materiale della serratura: |
SPCC, metallurgie delle polveri |
Tensione nominale: |
DC12V |
Corrente: |
2,5 |
Potere massimo: |
30W |
Temperatura del lavoro: |
-40℃ a +80℃ |
Applicazione: |
Armadio intelligente della lavanderia, armadio logistico astuto ecc |
Dimensione della serratura: |
70mmx70mmx13.2mm |
Peso con il gancio: |
210g |
Materiale della serratura: |
SPCC, metallurgie delle polveri |
Tensione nominale: |
DC12V |
Corrente: |
2,5 |
Potere massimo: |
30W |
Temperatura del lavoro: |
-40℃ a +80℃ |
Applicazione: |
Armadio intelligente della lavanderia, armadio logistico astuto ecc |
OEM ODM Customized Smart Electronic Lock Automatic Intelligent Laundry Locker Lock
Product Quick Detail
Product Description

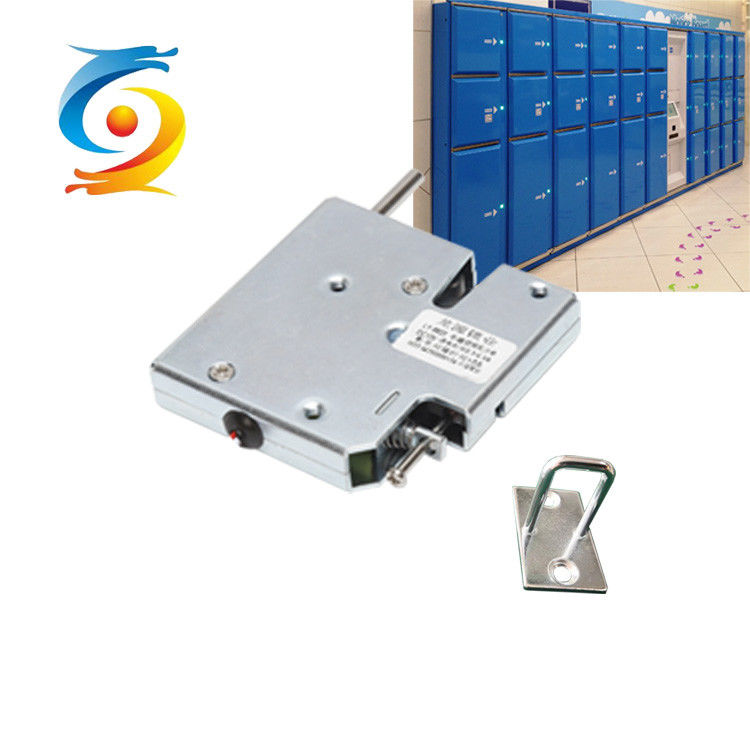

LY-8823 is an electromagnetic lock developed by Shenzhen Longyuan
LY-8823 electromagnetic lock has the advantages of high sensitivity, shockproof,
anti-prying and anti-rust ability, which fully guarantees the reliability and stability of customers in use.
| Specifications | |||
| Brand | Longyuan Lock | Product Name | Electromagnetic lock |
| Model | LY-8823 | Size | 70mmx70mmx13.2mm |
| Weight with lock hook | 210g | Working Voltage | DC12V (Voltage 5-24V customized) |
| Material of lock body | SPCC | Working Current | 2.5A |
| Material of lock tongue | Powder Metallurgy | Min Unlock Voltage | 6V |
| Manner of Working | Open after power on | Max power | 30W |
| Resistant | 4.8Ω | Reaction time | 0.3sec |
| Strength of anti-ceiling door |
12V/12kg; 10V/7kg 8V/5kg |
Max bearing force of the lock latch | ≥600N(The lock is not opened) |
| Elasticity of Opening door | ≥3.5kg ±15% | Load unlocking test | ≥150N(Power on to unlock) |
| Max bending resistance of lock latch (elastic deformation) | ≥80N | Connector | SM Female and Male(The strength between the rubber shells is 2kg for one minute, and there is no peeling, damage and poor conduction) |
| Standard Outer leakage Cable Length | 170mm (cable customized) | Work temperature | -40℃ to +80℃ |
| Surface treatment | Galvanized | Working humidity | 95% |
| Working life | More than 100,000times | Sample | Accepted |
| Certification | CE,ISO9000,RoHS | Warranty | 1year |
| Install Style | Screw | OEM | Accepted |
| Signal detection/ switch (open/close) | Open/ Close Feedback for option | ||
| Test | Test power on/off of power supply; Neutral salt spray; Insulation; DC resistance; Ejector rod elasticity; Door force; Voltage Tolerance; Overall lock Life; High temperature and humidity; Anti-vibration; Anti-shoke etc | ||
| Usage |
Storage Cabinet, Letter News Paper Box, Smart Locker, File Cabinet, Filing Cabinet, Drawer, Distribution Box, Wardrobe, Vending Machine, Bookcase, Tools Box, Deep-freeze Fresh Cabinet, Employee Locker, Checkout Counter, Safe Deposit Cabinet etc. |
||
Company profile
Shenzhen Longyuan Lock Industry Co.,Ltd. founded in China in 2007,Longyuan lock has a full line of products overseen by our in-house engineering team and company-owned manufacturing facilities.
By owning and operating the supply chain we are able to ensure the Longyuan lock standard of quality and availability for our global customers.
Longyuan Lock committed to be the global leader in electromagnetic lock.
